Hihg Dc Current Gain--Min @Ic=1.5A VCE=5V
Collector Enitter Sustaining Voltage HEF=25

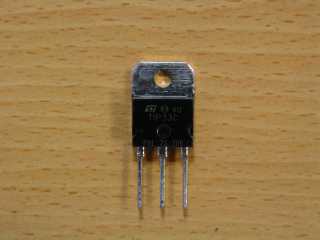

VCEO=100VDC--TIP33C TIP34C
15 AMPERE
40-100 VOLTS
45-50 WATTS TO-218(3P)
MAXIMUM
RATINGS
Characteristic
|
Symbol
|
TIP33C
|
TIP34C
|
Unit
|
Collector-Emitter Voltage
|
VCEO
|
100
|
100
|
V
|
Collector-Emitter Voltage
|
VCBO
|
100
|
100
|
V
|
Emitter-Base Voltage
|
VEBO
|
6.0
|
V
|
Collector Current-Continuous
|
IC
|
10
|
A
|
Base Current
|
IB
|
3
|
A
|
Total Power Dissipation @TC=25℃
Derate above 25℃
|
PD
|
|
W
W/℃
|
Operating and Storage Junction
Temperature Range
|
TJ TSTG
|
-65 TO +150
|
℃
|
PIN 1 BASE
2 COLLECTOR
3 EMITTER
