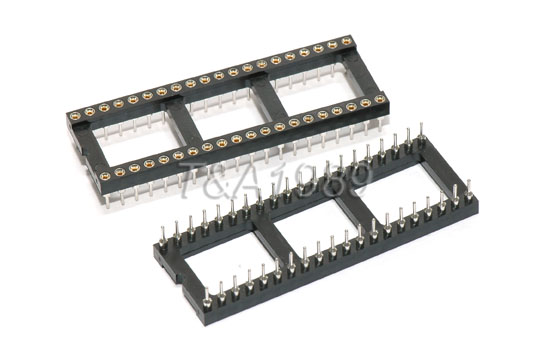

Matierial: Pin(outer sleeve): Brass,machined Clip(cotact 4 finger): Beryllium Copper,heat treated Plating(outer sleeve): Tin plated: 2mm/80u"Ni, 5mm/200μ"Sn Plating(coctact): 2mm/80u"Ni, gold or Tin plated Insulator(black): Glass filled thermoplastic polyester UL94V-0 Electrical: Current rating: 3Amps/contact max. Contact resistance: ?4mΩ/contact Insulation resistance: ?1000MΩ at V=100V Operaing voltage: 60VAC/DC Mechanical: Average insertion force with steel pin of Φ0.43mm/0.017": <250g Average withdrawal force with steel pin of Φ0.43mm/0.017": >50g min. Mechanical life cycle:min.200 Operaing temperatures: Gold Plsted:-55°C to+ 150°C Tin plated:-40°C to+ 150°C Soldering temperature: +260°C,10s max.
