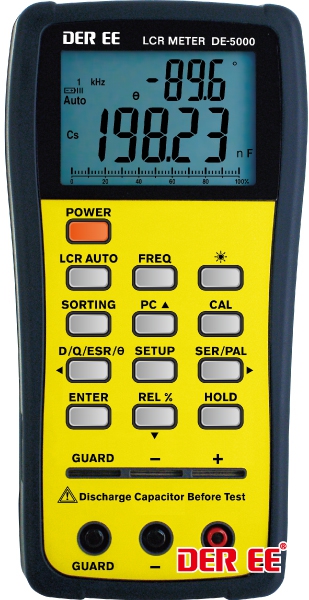

規 格
l 量測參數：Ls/ Lp/ Cs/ Cp/ Rs/ Rp/ D/ Q/ Θ/ ESR LCR自動選擇
l 量測模式：串聯 / 並聯模式
l 顯示規格：19999/ 1999 數值雙顯示
l 跳檔方式：自動換檔
l 量測端子：4線式彈片夾及端子，GUARD端子
l AUTO LCR量測範圍：L: 20.000μH ~ 2.000 KH
C: 200.00pF ~ 20.00mF
R: 20.000 Ω ~ 200.0 MΩ
DCR: 200.00 Ω ~200.0 MΩ
l 量測頻率：100Hz、120Hz、1KHz、10KHz、100KHz
l 背光：有
l 元件挑選誤差容許：±0.25%、±0.5%、± 1%、±2%、±5%、±10%、±20%、-20%+80%
l 量測信號：0.5 Vrms
l 量測速率：1.2次/ 秒
l 反應時間：約1秒/ 待測物
l 自動關機：5分鐘內無使用任何按鍵
溫度/溼度
l 操作溫度，濕度：0°C to 50°C; 0-70% 相對濕度
l 儲存溫度，濕度：-20°C to +60°C; 0-80% 相對濕度
外型尺寸/重量
l 尺寸：188(L) x 95(W) x 52.5(H)mm
l 重量：約 350 公克 (單機重量,不含電池及配件)
附 件
l 標準配件：測試棒盒(TL21)、接地線(TL23)、9V電池、說明書、電源轉接器
l 選購配件：IR-USB轉換盒, USB線, 筆式測試夾 (TL22)
電氣規格
l 規格表示如: ± ( 讀值% +最低位數數值 )，溫度23°C ± 5°C，濕度
■ Resistance (Parallel / Series mode)
|
Range
|
Resolution
|
100/120Hz
|
1kHz
|
10kHz
|
100kHz
|
|
20.000Ω
|
0.001Ω
|
─
|
1.0%+3*
|
1.0%+3*
|
2.0%+3*
|
|
200.00Ω
|
0.01Ω
|
1.0%+3
|
0.3%+2
|
0.3%+2
|
0.6%+3
|
|
2.0000kΩ
|
0.0001kΩ
|
0.3%+2
|
0.3%+2
|
0.3%+2
|
0.6%+3
|
|
20.000kΩ
|
0.001kΩ
|
0.3%+2
|
0.3%+2
|
0.3%+2
|
0.6%+3
|
|
200.00kΩ
|
0.01kΩ
|
0.5%+2
|
0.5%+2
|
0.5%+2
|
1.0%+3
|
|
2.0000MΩ
(2.000MΩ)
|
0.0001MΩ
|
1.0%+3
|
1.0%+3
|
1.0%+3
|
─
|
|
0.001MΩ
|
─
|
─
|
─
|
2.0%+3*
|
|
20.000MΩ
(20.00MΩ)
|
0.001MΩ
|
2.0%+3*
|
2.0%+3*
|
─
|
─
|
|
0.01MΩ
|
─
|
─
|
2.0%+3*
|
─
|
|
200.0MΩ
|
0.1MΩ
|
2.0%+3*
|
2.0%+3*
|
─
|
─
|
*Do open/short calibration before measuring for above ranges with * to have better precision measurements.
n DCR
|
Range
|
Resolution
|
Accuracy
|
|
200.00Ω
|
0.01Ω
|
1.0%+3*
|
|
2.0000kΩ
|
0.0001kΩ
|
0.2%+2
|
|
20.000kΩ
|
0.001kΩ
|
0.2%+2
|
|
200.00kΩ
|
0.01kΩ
|
0.5%+2
|
|
2.0000MΩ
|
0.0001MΩ
|
1.0%+3
|
|
20.000MΩ
|
0.001MΩ
|
2.0%+3*
|
|
200.0MΩ
|
0.1MΩ
|
2.0%+3*
|
*Do open/short calibration before measuring for above ranges with * to have better precision measurements.
n Capacitance (Parallel / Series mode)
|
Range
|
Resolution
|
100/120Hz
|
1kHz
|
10kHz
|
100kHz
|
|
200.00pF
|
0.01pF
|
─
|
─
|
1.2%+5*
|
2.0%+5*
|
|
2000.0pF
|
0.1pF
|
─
|
2.0%+3*
|
0.3%+2
|
0.6%+3
|
|
20.000nF
|
0.001nF
|
2.0%+3*
|
0.3%+2
|
0.3%+2
|
0.6%+3
|
|
200.00nF
|
0.01nF
|
0.3%+2
|
0.3%+2
|
0.3%+2
|
0.6%+3
|
|
2000.0nF
|
0.1nF
|
0.3%+2
|
0.3%+2
|
0.6%+2
|
2.0%+5*
|
|
20.000μF
(20.00μF)
|
0.001μF
|
0.3%+2
|
0.6%+2
|
1.2%+5*
|
─
|
|
0.01μF
|
─
|
─
|
─
|
3.0%+5 (10μF max.)*
|
|
200.00μF
(200.0μF)
|
0.01μF
|
0.6%+2
|
1.0%+3*
|
─
|
─
|
|
0.1μF
|
─
|
─
|
3.0%+5 (100μF max.)*
|
─
|
|
2000.0μF
(2000μF)
|
0.1μF
|
1.0%+3*
|
─
|
─
|
─
|
|
1μF
|
─
|
1.2%+3*
|
─
|
─
|
|
20.00mF
|
0.01mF
|
1.2%+3*
|
─
|
─
|
─
|
If reading * Do open/short calibration before measuring for above ranges with * to have better precision measurements.
n Inductance (Parallel / Series mode).
|
Range
|
Resolution
|
100/120Hz
|
1kHz
|
10kHz
|
100kHz
|
|
20.000μH
|
0.001μH
|
─
|
─
|
─
|
2.5%+5*
|
|
200.00μH
|
0.01μH
|
─
|
─
|
1.2%+5*
|
0.6%+3
|
|
2000.0μH
|
0.1μH
|
─
|
2.0%+5*
|
0.6%+3
|
0.6%+3
|
|
20.000mH
|
0.001mH
|
1.2%+5*
|
1.0%+5
|
0.3%+2
|
0.6%+3
|
|
200.00mH
|
0.01mH
|
0.3%+2
|
0.6%+3
|
0.3%+2
|
1.2%+5*
|
|
2000.0mH
|
0.1mH
|
0.3%+2
|
0.3%+2
|
0.6%+3
|
─
|
|
20.000H
|
0.001H
|
0.3%+2
|
0.6%+3
|
1.2%+5*
|
─
|
|
200.0H
|
0.1H
|
0.6%+3
|
1.2%+5*
|
─
|
─
|
|
2.000KH
|
0.001KH
|
1.2%+5*
|
─
|
─
|
─
|
If reading * Do open/short calibration before measuring for above ranges with * to have better precision measurements.
n Accuracy v.s. Resistance (ZDUT)
|
|
DCR
|
100/120Hz
|
1kHz
|
10kHz
|
100kHz
|
|
0.1~1Ω
|
1.2%+5*
|
1.2%+5*
|
1.2%+5*
|
1.2%+5*
|
2.5%+5*
|
|
1~10Ω
|
0.6%+3*
|
0.6%+3*
|
0.6%+3*
|
0.6%+3*
|
1.2%+5*
|
|
10~100kΩ
|
0.3%+2
|
0.3%+2
|
0.3%+2
|
0.3%+2
|
0.6%+3
|
|
100k~1MΩ
|
0.6%+3
|
0.6%+3
|
0.6%+3
|
0.6%+3
|
2.5%+5*
100k~2MΩ
|
|
1M~20MΩ
|
1.2%+5*
|
1.2%+5*
|
1.2%+5*
|
2.5%+5*
|
|
>20MΩ
|
2.5%+5*
|
2.5%+5*
|
2.5%+5*
|
─
|
─
|
* Do open/short calibration before measuring for above ranges with * to have better precision measurements.
If D > 0.1, the accuracy should be multiplied by
If D << 0.1 in capacitance mode ZC = 1/2πfC
If D << 0.1 in inductance mode ZL = 2πfL
Sub-display parameters accuracy
Ae = impedance (Z) accuracy
Definition: Q = 1/D & Rp = ESR * (1+1/D2)
D value accuracy De = ± Ae *(1+D)
ESR accuracy Re= ± ZM * Ae (Ω)
ie., ZM = impedance calculated by 1/2πf C or 2πf L
Phase angle θ accuracy θe= ± (180/π) * Ae (deg)
