300VOLTS
80  WATTS

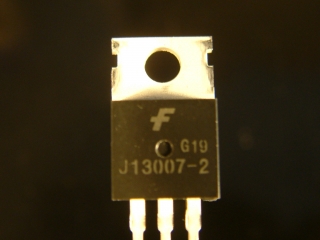

TO-220
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Conditions | Ratings | Unit |
| Collector-to-Emitter
 Voltage | VCEO |  | 300 | V |
| Gollector-to-Emilter
Voltage | VCEV |  | 600 | V |
| Emilter-to-Base
 Voltage | VEBO |  | 9 | V |
| Collector Current | IC |  | 8 | A |
| Collector Current(Pules) | ICM |  | 16 | A |
| Baser Current | IB |  | 4 | A |
| Collector
Dissipation | PC |  | 80 | W |
| Tc=25℃ | 0.64 | W |
| Jumction
Temperature | Tj |  | 150 | ℃ |
| Storage Temperature | Tstg |  | -55 TO+150 | ℃ |
